Description
The EVERSE series is driven by a high-efficiency Class-D amplifier and DSP module developed in collaboration with the world-class audio electronics engineering team at EV’s sibling brand Dynacord. Pro features include a built in four-channel digital mixer with studio-quality effects and processing, 48 V phantom power, feedback suppression and audio ducking. Between the EV and the D badges, you get the best of both worlds.
Get proven Electro-Voice sound quality and reliability in a battery-powered format that makes sense for a wide range of indoor/ outdoor gigs. Premium features include a titanium dome compression driver, up to 12 hours of run time, true stereo streaming, power for mobile devices and a wireless microphone system, and much more. Great sound to grab and go.
Specifications
- Application - Pole-mounted / monitor / kick-back
-
Transducers
- 12” woofer, ferrite magnet
- 1” compression driver, neodymium magnet, ferrofluid cooled
- Power rating (peak) - 400 W
- SPL max - 126 dB
- Coverage (H x V) - 100° x 60°
- Frequency range (-10 dB) / response (-3 dB) - 45 Hz – 20 kHz / 55 Hz – 20 kHz
-
Material
- Enclosure: polypropylene
- Grille: steel with powder coat
- Digital signal processing - QuickSmartDSP features best-in-class processing powered by Dynacord. Easy setup via seven-band GEQ for main EQ, user-programmable presets, visual monitoring of limiter status, input level control and meters, digital effect control, and master volume control to optimize gain structure, all via LCD or the free QuickSmart Mobile app.
- Remote control and monitoring - EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six EVERSE 12 systems simultaneously, and receive immediate notification during critical performance conditions.
- Bluetooth audio streaming and true wireless stereo - YES
- Crossover frequency - 2000 Hz
-

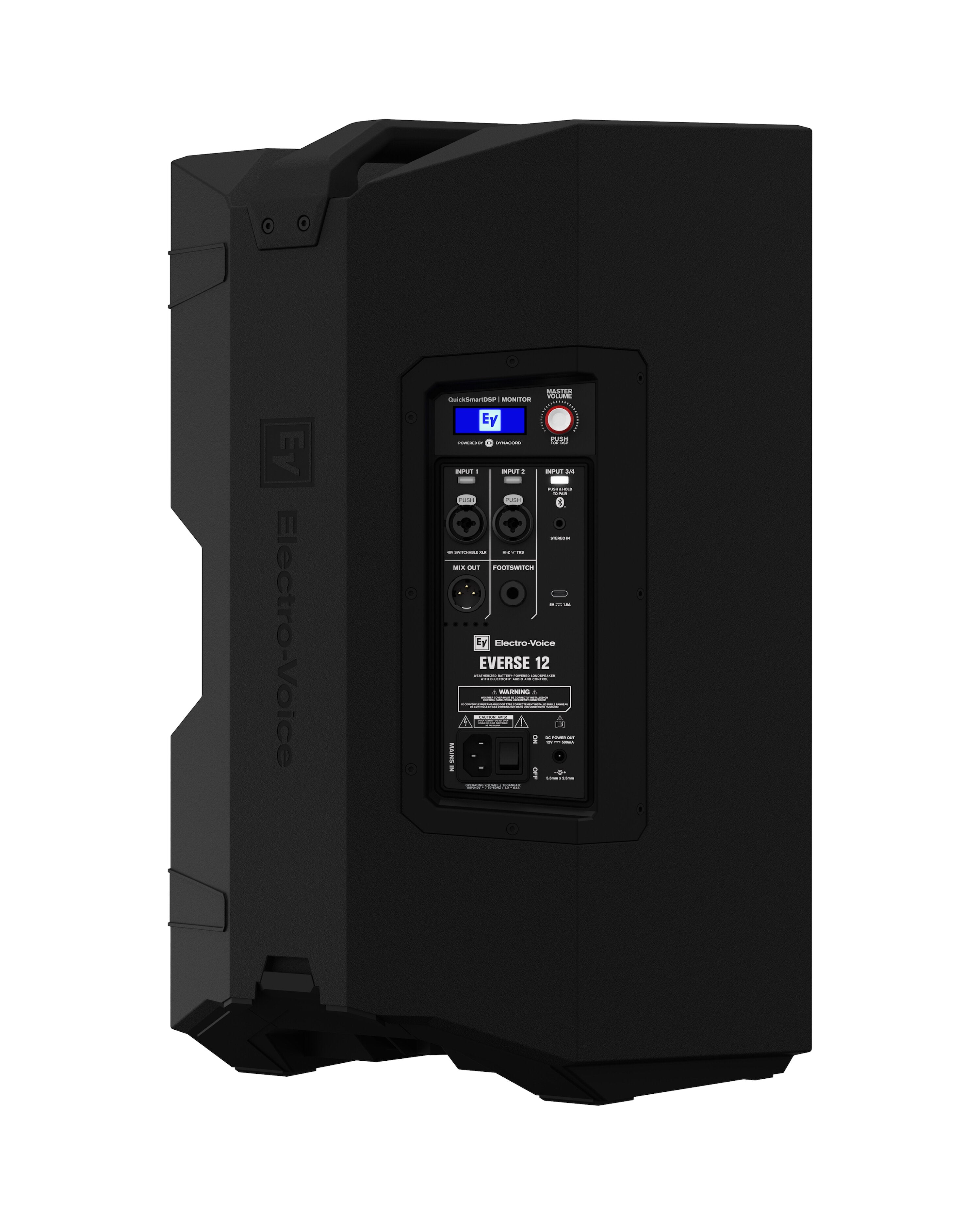

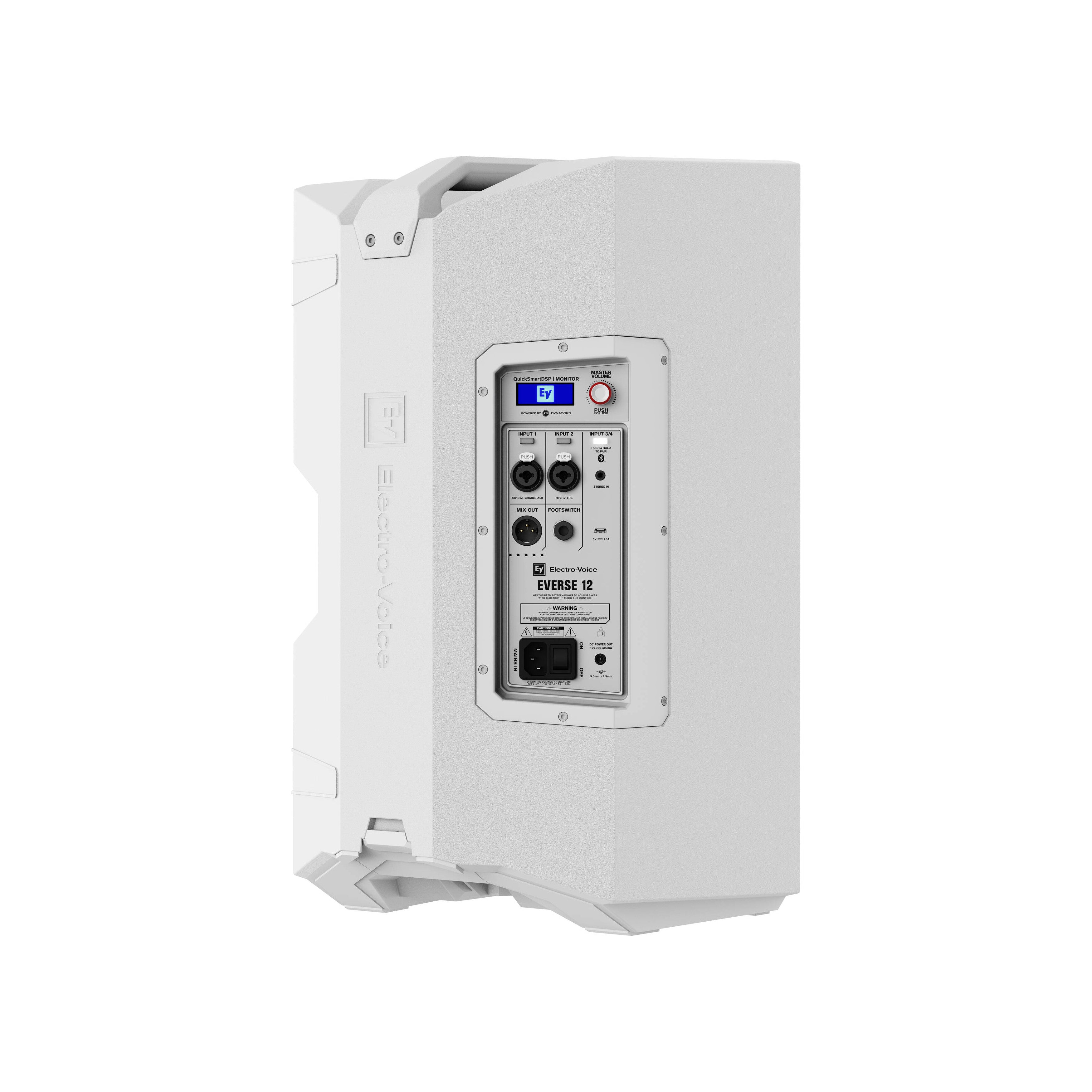

Connectors
- 2x XLR/TRS combo jack
- 1x charge port
- 1x XLR output
- 1x 12 V DC power output
- 1x 3.5mm stereo
- 1x TRS footswitch
- USB charging - 1.5 A max, device-dependent
- Power consumption - 100 - 240 V~, 50 - 60 Hz, 1.2 - 0.6 A
- Battery capacity - 86.4 Wh
- Battery at max output - 6+ hours of run optimize6+ hours of run time
- Battery at moderate output - 12+ hours of run time
- Kick-back / monitor angles - 25° / 55°
- Color - Black
- Weight - 14.16 kg (31.22 lbs)
- Dimensions (W x H x D) - 13.58 x 23.5 x 13.66 inch (345 x 597 x 347 mm)
What's in the Box
- EVERSE 12 speaker
- Input weather cover
- Power cable
- Battery pack
- Quick user guide
- Safety & Security Information booklet
