Description

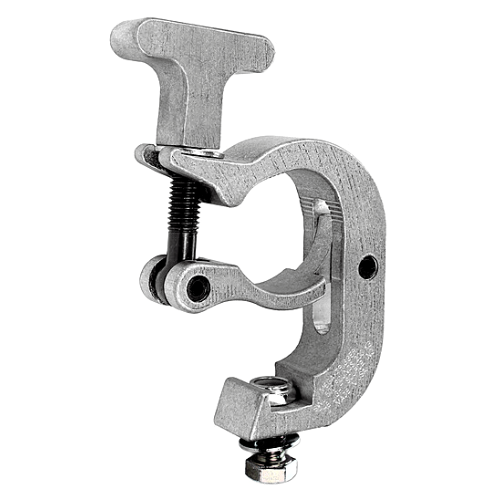

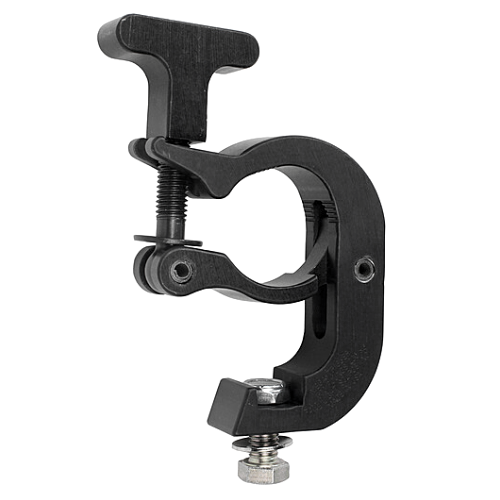

The TC Clamp will fasten from 2" OD to 1.5" OD tube. It has a 2-1/2" T-handle so no tools are required to fasten to the pipe.
1.25" x 1/2"-13 TPI Grade 8 fastener, Nylock Nut and 1" diameter Belleville Spring washer are provided for connecting your load.
Dimensions: 4-5/8" Tx 4"W x 1-3/16" thick. Safe Vertical Working Load 450 Pounds, (200 KG).
