Description
At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.
MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorized fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.

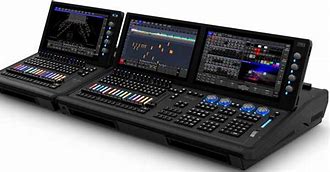

MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.
MQ500M+ Stadium has inbuilt MagicVis 3D visualizer with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.
Overview:
- 400 universes direct from the console
- 15 fully motorized fader playbacks
- 15 encoder playback with RGB indicators
- 12 multi-purpose Macro/Executes/Playbacks keys
- RGB illumination of playbacks
- Backlit buttons
- Dual Inbuilt 15″ Multi HD touch displays
- Two Display Port++ External Monitor Support
- Inbuilt Wi-Fi for connection of Remote Focus application
- Inbuilt 4-port Gigabit Network Switch
- 4 DMX ports

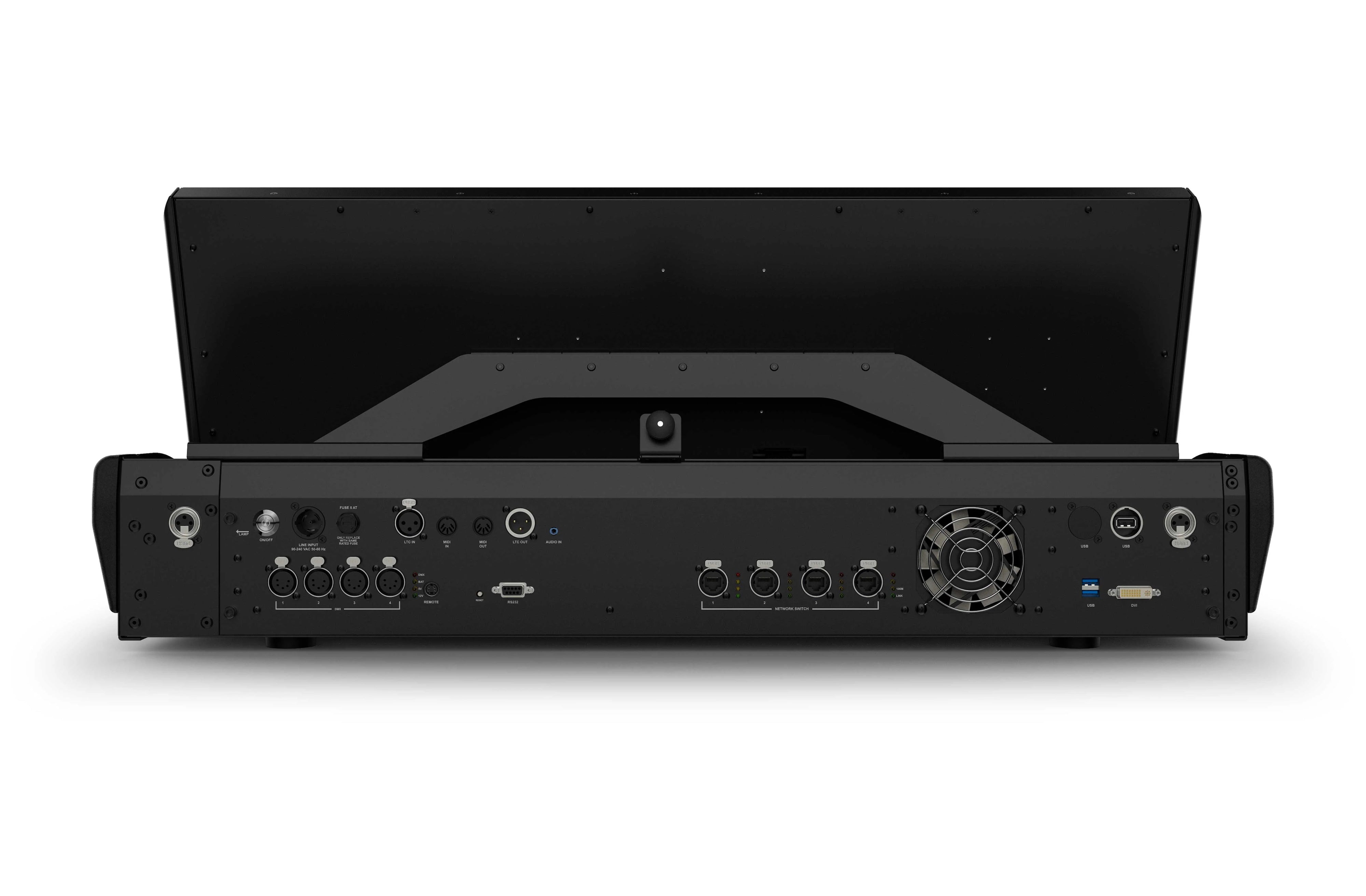

- Audio In/Out on the Rear Panel
- Power Out for MQ500M Stadium Wing
- Up to 8 touch displays support (2 Internal, 2 External, 4 via remote network)
- Dual motorized 100mm crossfaders ideal for Theatre
- Inbuilt MagicVis Visualizer with full rendering of beams and gobos
